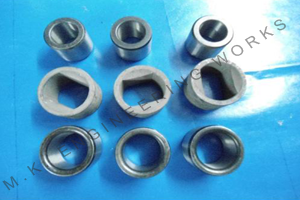

We offer a wide range of products which include Bushes for Moulding Box & Pattern Plates, C.I Match Plate Bush Round, C.I Match Plate Bush Flat, Wooden Match Plate Bush Round, Wooden Match Plate Bush Flat and Foundry Products.

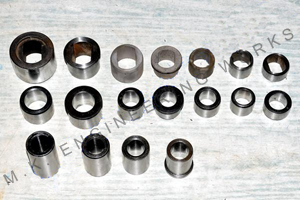

The Bushes are used in Moulding Boxes and Match Plates. The Round Bushes are Hardened to above 55 HRC and Ground internally & externally to get accurate dimensions.The Flat Bushes are inside Broached, OD Ground and Nitrided to 300 to 400 Vickers Hardness.

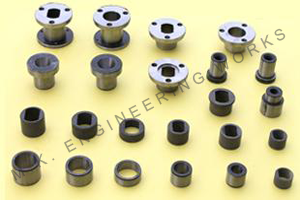

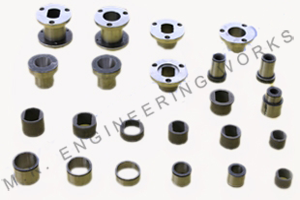

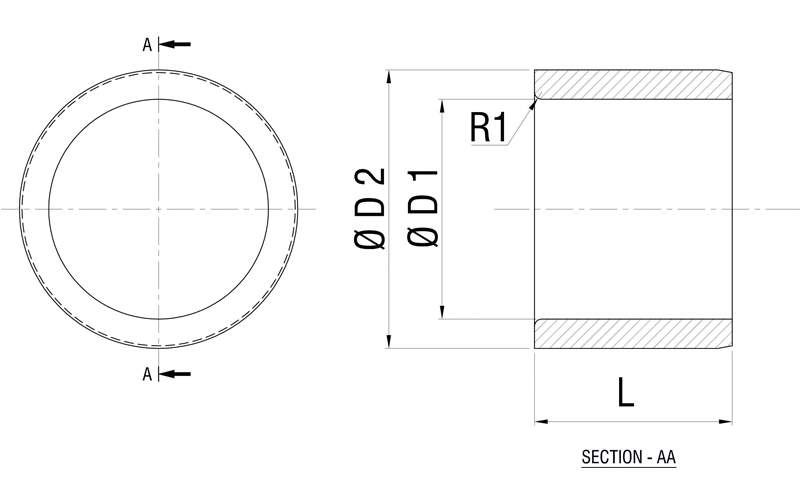

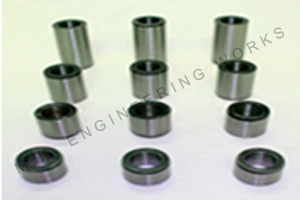

Our organization is a major provider of Moulding Box Bushes Round to our clients. Excellent machines have been used for drilling of both sides. It has hard steel body and is widely used in different automobile fittings. This product has abrasion resistant coating and is offered in several dimensions.
| D1 | D2 | L |
|---|---|---|
| Ø19 | Ø30 | 20 |
| Ø19 | Ø30 | 27 |
| Ø19 | Ø30 | 40 |
| Ø25 | Ø35 | 27 |
| Ø25 | Ø38 | 27 |

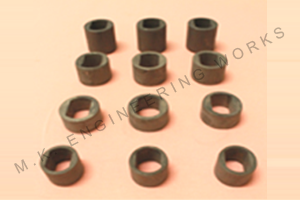

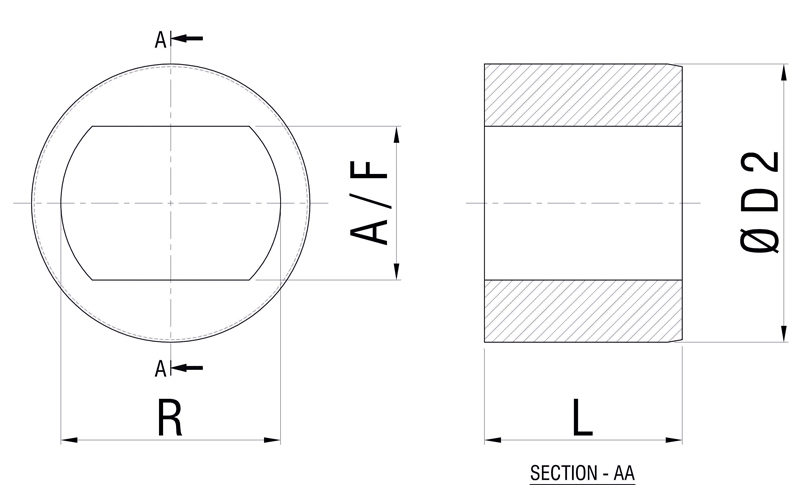

Our organization is a major provider of Moulding Box Bushes Flat to our clients. Excellent machines have been used for drilling of both sides. It has hard steel body and is widely used in different automobile fittings.
| A / F | R | D2 | L |
|---|---|---|---|
| 19 | 24 | Ø30 | 20 |
| 21 | 30 | Ø38 | 20 |
| 21 | 30 | Ø38 | 27 |
| 21 | 30 | Ø38 | 40 |

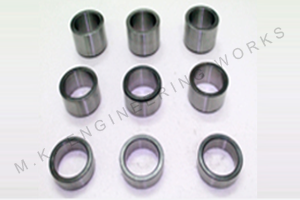

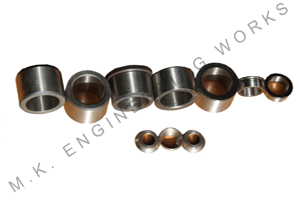

Our organization is a major provider of C.I. Match Plate Bushes Round to our clients. Excellent machines have been used for drilling of both sides. It has hard steel body and is widely used in different automobile fittings.
| D1 | D2 | L |
|---|---|---|
| Ø35 | Ø45 | 17 |
| Ø35 | Ø45 | 27 |
| Ø35 | Ø45 | 38 |

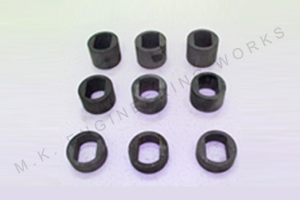

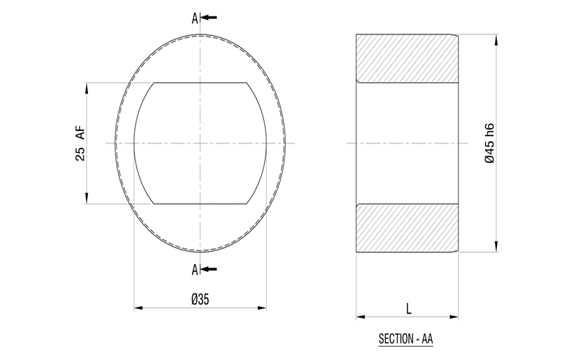

Our organization is a major provider of C.I. Match Plate Bushes Flat to our clients. Excellent machines have been used for drilling of both sides. It has hard steel body and is widely used in different automobile fittings.
| A / F | R | D2 | L |
|---|---|---|---|
| 25 | 35 | Ø45 | 17 |
| 25 | 35 | Ø45 | 27 |
| 25 | 35 | Ø45 | 38 |

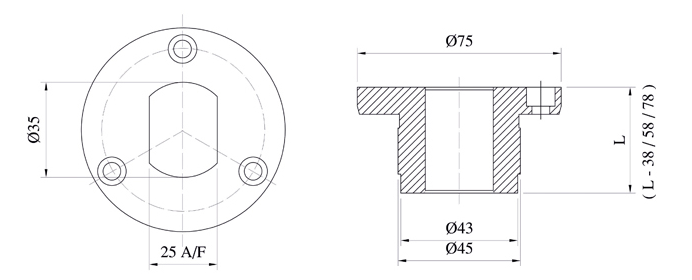

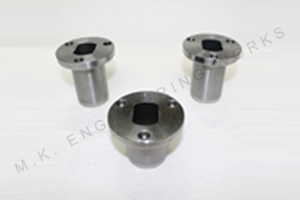

Our organization is a major provider of Wooden Match Plate Bush Flat to our clients.
| L |
|---|
| 39 |
| 59 |
| 79 |

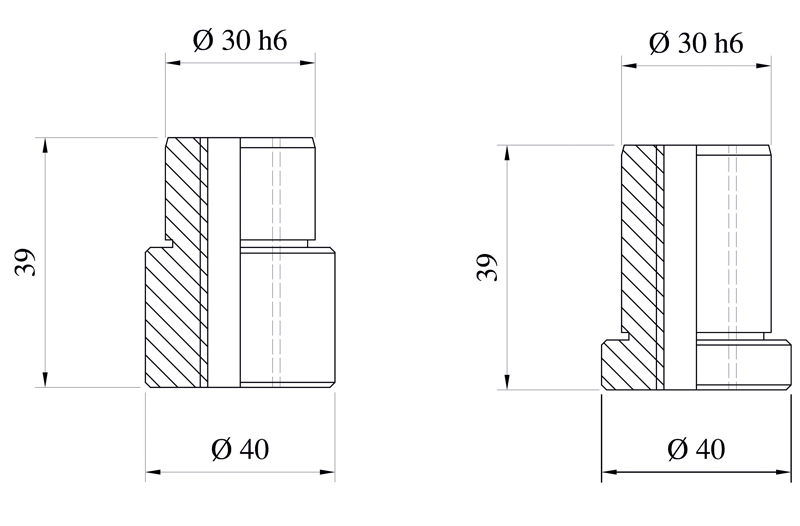

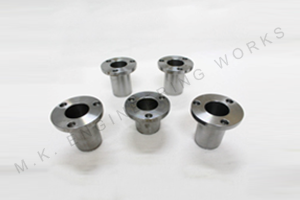

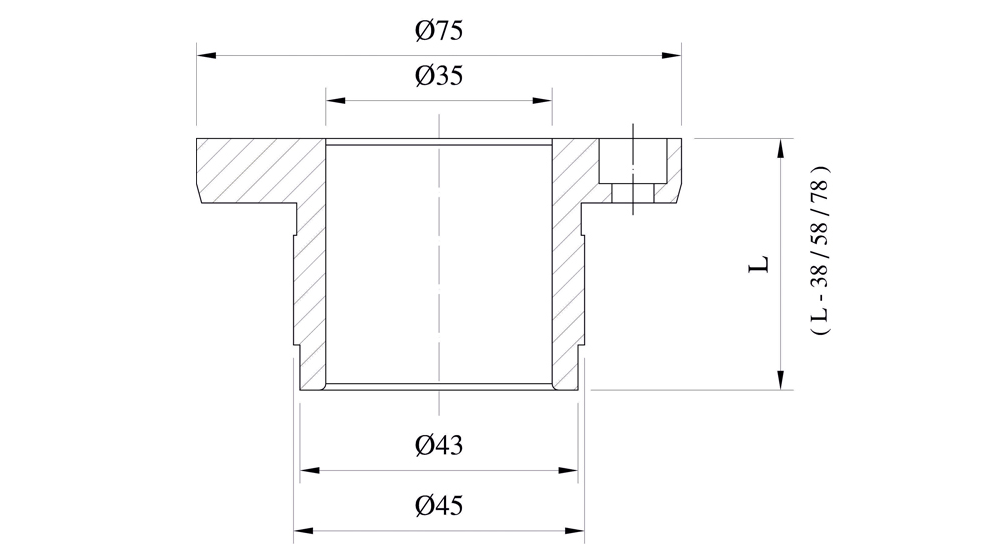

Our organization is a major provider of Wooden Match Plate Bush Round to our clients. The Round Bushes are Hardened to above 55 HRC and Ground internally & externally to get accurate dimensions.The Flat Bushes are inside Broached, OD Ground and Nitrided to 300 to 400 Vickers Hardness.
| L |
|---|
| 39 |
| 59 |
| 79 |

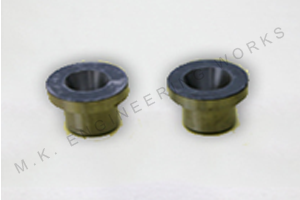

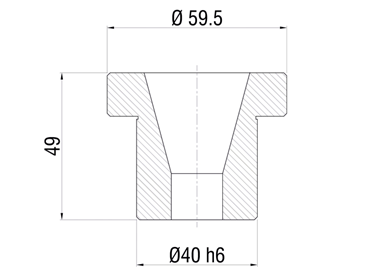

Our organization is a major provider of Machine Table Bush to our clients.
| ØD | for PIN |
|---|---|
| 35 | R |
| 32 | F |
The Bushes are used in Moulding Boxes and Match Plates. The Round Bushes are Hardened to above 55 HRC and Ground internally & externally to get accurate dimensions.The Flat Bushes are inside Broached, OD Ground and Nitrided to 300 to 400 Vickers Hardness.
Minimum Order Quantity - 50 Piece(s)
Minimum Order Quantity - 50 Piece(s)
Minimum Order Quantity - 50 Piece(s)
Minimum Order Quantity - 50 Piece(s)
Minimum Order Quantity - 50 Piece(s)
